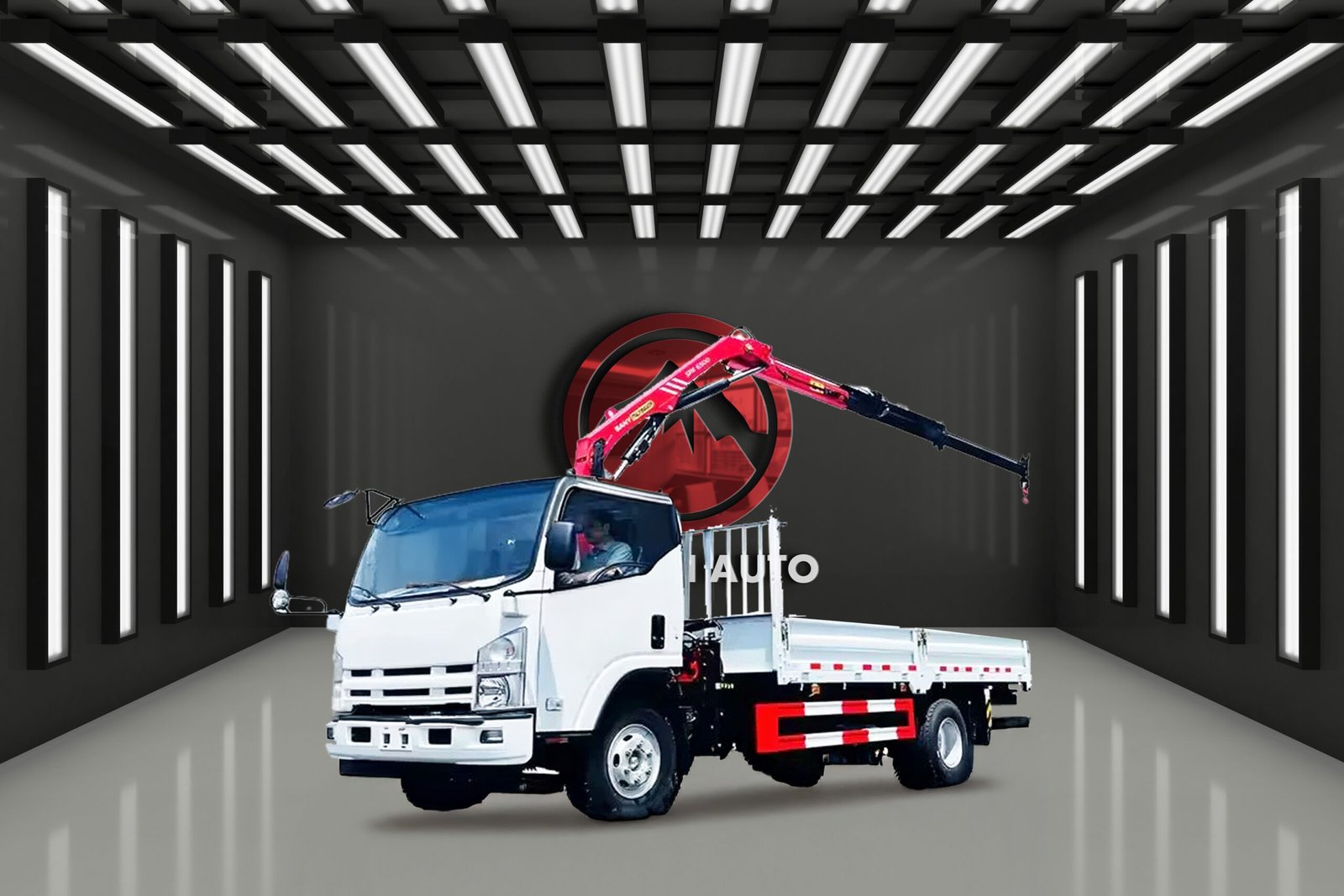

ISUZU NPR 5.7 Tons Crane Truck

Drive Type: 4×2

Wheelbase (mm): 4175

Cabin chassis Weight

•⁠ ⁠GVW (kg): 10550

-Curb Weight (kg): 3100

-Loading Capacity (Kg): 4500-6500

Overall size(mm): 7400X2180X3060

Box Size(mm): 4900X2150X450mm

Tire: 235/75R17.5 16PR

Cab:

-Double/Single: single

-Driver & Passenger: 3

Axle payload (T):

-Front Axle:

3.3

-Rear Axle: 6.7

Engine

Model: Isuzu 4HK1-TCG61

Number of cylinder: 4 Cylinders in line, high presure, electrical common-rail diesel fuel injection system, water cooling, turbo charging, inter cooling.

Displacement (L): 5.193

Emission Standard: Euro VI

MRated Power (km):139

Transmission

Transmission: MLD-6Q 6 Forward + 1 Reverse

Control: Manual

Brake System: Air

Crane details

Max outreach:

10.3

Max Lift Momental (kN-m): 93.5

Max Lift Capacity (kg):5700

Max Lifting Height(m): 13.5

Length of the fully extended boom(m): 10.3

Span of leg(m): 4.87

Operating Temperature (C°): -20°-50°

Rated flow(L/min): 30-45

Rated working pressure(
